PROCESSOR (Socket 478-based Intel®) •Click here for Motherboard vs CPU Table • Intel® Pentium® 4 Processor – Hyper-Threading Technology – 800/533MHz system data bus • Intel® Celeron® D processor (478-pin) – 533MHz system data bus – Based on 90nm core •Click here for Intel® CPU Reference Table CHIPSET • Intel® 915GV chipset – Intel® 915GV Graphics Memory Controller Hub (GMCH) – Intel® 82801FB I/O Controller Hub (ICH6) SYSTEM MEMORY • Two 184-pin DDR SDRAM DIMM sockets • Supports dual channel (128-bit wide) memory interface • 2.6V unbuffered PC3200 (DDR400) or PC2700 (DDR333) DDR SDRAM DIMM • Supports maximum of 2GB system memory using 256Mbit, 512Mbit, or 1Gbit technology for x8 and x16 devices BIOS • Award BIOS • Supports SCSI sequential boot-up • Supports DMI 2.0 function • 4Mbit flash memory ENERGY EFFICIENT DESIGN • Supports ACPI specification and OS Directed Power Management • Supports ACPI STR (Suspend to RAM) function • Wake-On-Events include: – Wake-On-PS/2 Keyboard/Mouse – Wake-On-USB Keyboard – Wake-On-LAN – Wake-On-Ring – RTC timer to power-on the system • System power management supported • CPU stopped clock control • Hardware supports SMI green mode • Microsoft®/Intel® APM 1.2 compliant • Soft Power supported - ACPI v1.0a specification • AC power failure recovery
|
ONBOARD GRAPHICS FEATURES • Graphics Memory – Shares 1MB/8MB of the system memory in DOS mode – Uses Dynamic Video Memory Technology (DVMT) in Windows mode • Graphics Controller – Core frequency of 333MHz – 400MHz integrated 24-bit RAMDAC – Analog display up to 2048x1536 @ 85Hz refresh – High quality 3D setup and render engine - Discrete, Triangles, Strips and Fans – Hardware Pixel Shader 2.0 – Supports D3D and OGL pixelization rules – Per pixel perspective corrected texture mapping – 533 MegaTexel/sec performance, 266 Mpixels/sec fill rate up to two bilinear textures • 2D Graphics engine – Optimized 256-bit BLT engine – 32-bit alpha blended cursor – Programmable 3-color transparent cursor • 3D Graphics engine – Supports maximum 3D resolution: 1600x1200x32 @ 85Hz – Flat and Gouraud Shading – 16-bit and 24-bit Z-buffering; 8-bit Stencil buffering – Vertex and programmable pixel fog and atmospheric effects – Supports double and triple render buffer • Software drivers – Windows® 2000/XP
| |

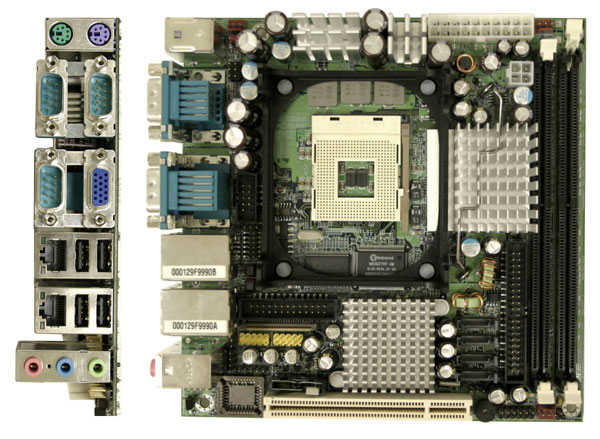

Revision Controlled Motherboard: G4G100-N | ||
|
DAMAGE FREE INTELLIGENCE • Monitors CPU/system temperature and overheat alarm • Monitors 5VSB(V)/VBAT(V)/1.5V/3.3V/5V/12V/CPU(V) voltages and failure alarm • Monitors CPU/chassis/2nd fan speed and failure alarm • Read back capability that displays temperature, voltage and fan speed • Supports Watchdog Timer Function ONBOARD AUDIO FEATURES • Realtek ALC202A • 18-bit stereo full-duplex codec with independent variable sampling rate • High quality differential CD input • True stereo line level outputs • S/PDIF-out interface • 2-channel audio output ONBOARD LAN FEATURES • Two Marvell 88E8053 PCI Express Gigabit ethernet controllers • Integrated power management functions • Full duplex support at 10 Mbps, 100 Mbps, and 1 Gbps • Supports IEEE 802.3 auto-negotiation • Supports wire for management Serial ATA IDE INTERFACE • Supports four SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface) •Click here for Work Instruction for SATA Raid IDE INTERFACE • Supports up to UltraDMA 100Mbps hard drives • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
|
REAR PANEL I/O PORTS • 4 USB 2.0/1.1 ports • 2 RJ45 LAN port • 3 DB-9 serial port • 1 DB-15 VGA port • 1 mini-DIN-6 PS/2 mouse port • 1 mini-DIN-6 PS/2 keyboard port • 3 audio jacks: line-out, line-in and mic-in I/O CONNECTORS • 2 connectors for 4 additional external USB 2.0/1.1 ports • 1 connector for external COM 3 • 1 connector for external parallel port • 1 front audio connector for line-out and mic-in jacks • 1 CD-in internal audio connector • 1 connector for IrDA interface • 1 40-pin IDE connector • 1 floppy connector (FPC type) • 2 ATX power supply connectors • 1 chassis open connector • 3 fan connectors EXPANSION SLOTS • 1 PCI slot for PCI expansion card or Riser Card COMPATIBILITY • PCI 2.2 and AC ’97 compliant PCB • 6 layers, mini-ITX form factor • 17cm (6.7") x 17cm (6.7") SAFETY • UL, cUL, FCC Class B, CE
|
|
