REVISION CONTROLLED MOTHERBOARD
Socket 370-based Intel® Pentium® III and Celeron® processors. Intel® 815E chipset. 133 MHz
front side bus, 5 PCI expansion slots, Audio, Video, Thermal monitor.
|
The GCS65-EC revision controlled motherboard offers industrial users the high performance processing power of Intel® Pentium® III processors in FC-PGA packaging . It can also use the economical Socket 370-based Intel® Celeron® processors.

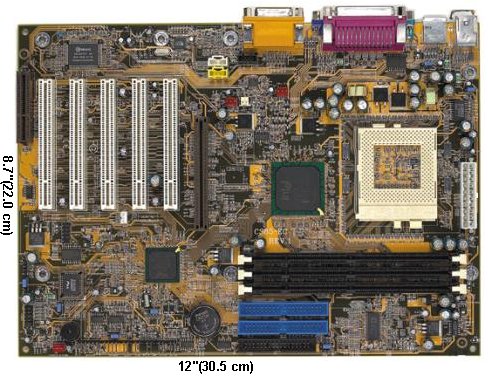

The CS65 features the Intel® 815E chipset on an ATX format motherboard. The chipset features an integrated graphics accelerator. The motherboard has an AGP card slot that will support a 4X AGP card when ultimate video performance is needed. The CS65 provides 5 full-length PCI slots to support large system configurations. It also has a Communication and Networking Riser (CNR) slot for additional system flexibility. When the CNR slot is used, PCI expansion is four slots.
The CS65-EC is produced uner strict revision control guidelines to provide a long product life cycle. This makes it ideal for telephony, industrial control, medical imagining, security, video editing, and gaming.
Features:· Long and stable product life cycle · Intgrated video accelerator; AGP slot for optional 2X4X AGP video card · On-board audio: AC 97 code with Yamaha AP · CNR expansion slot · Intel® 815E chipset with 60/ 100/ 133MHz front side bus · Monitors fan speed, temperature, and power supply voltages |
  |
GCS65-EC REVISION CONTROLLED MOTHERBOARD
PROCESSOR• Click here for Motherboard vs CPU Table • Intel® Celeron® w PPGA packaging to 533 MHz @ 66 MHz FSB • Intel® Celeron®w FC-PGA packaging to 733 MHz @ 66 MHz FSB • Intel® Celeron®w FC-PGA packaging to 1100 MHz @ 100 MHz FSB • Intel® Pentium® III w FC-PGA packaging to 1 GHz @ 133 MHz FSB • Intel® Pentium® III w FC-PGA packaging to 1.1 GHz @ 100 MHz FSB • Socket 370-based Intel® with a switching voltage regulator that automatically detects required processor voltage (1.30-2.05V) • Click here for Intel® CPU Reference Table CHIPSET• Intel® 815E chipset • Intel® ICH2 Architecture for faster throughput • 66, 100 and 133 MHz front side bus speed CACHE MEMORY• Intel® Celeron® processors: 128 KB on board • Intel® Pentium® III: 256 KB on processor SYSTEM MEMORY• 64 MB to 512 MB memory using unbuffered DIMMs • Three 168-pin DIMM sockets • Uses x64 SDRAM, 3.3V – PC-133 SDRAM DIMM for 133 MHz FSB processors – PC-100 SDRAM DIMM for 66 or 100 MHz FSB processors BIOS• Award BIOS 6.00PG, Windows® 95/98/2000 Plug and Play compatible • Flash EPROM for easy BIOS upgrades (4 Mbit) • Supports DMI 2.0 function • Includes Symbios Logic SCSI BIOS • Supports SCSI sequential boot-up ONBOARD VGA GRAPHICS ACCELERATOR• Intel® 3D graphics integrated into Intel® 815E chipset • 3D hyper pipelined architecture • Uses Dynamic Video Memory Technology (shares 1 MB) • Windows 95/98/2000/NT 4.0 software drivers • Software DVD playback at 30 fps • Accepts optional 4MB Graphics Performance Accelerator (GPA) card in AGP slot • Uses Dynamic Video Memory Technology (shares 1 MB) ONBOARD AUDIO• AC 97 supported with independent sample rate converters • Supports Microsoft DirectSound • 32 voice wavetable synthesizer ENERGY EFFICIENT DESIGN• Energy Star qualified • Hardware supports SMI green mode • Wake-On-Events include, RTC timer to power-on the system, modem wake-up/ring-on, Wake-On-LAN, Wake-On-Keyboard/Wake-On-Mouse, and wake-on-USB-keyboard • CPU stopped clock control • Microsoft®/Intel® APM 1.2 compliant • Soft Power supported - ACPI v1.0a specification • Suspend to Ram (STR) function |
PCI IDE INTERFACE• Supports ATA/100 hard drives • Ultra DMA/33, Ultra DMA/66 or Ultra DMA/100; • DMA transfer rate up to 100 MB/sec • PIO Mode 3 and Mode 4 • PIO mode data transfer rate up to 16.6MB/sec. • Supports ATAPI CD-ROM, LS-120, ZIP sequential boot-up DAMAGE FREE INTELLIGENCE• Monitors processor/system temperature, with overheat alarm • Monitors and failure alarm for 8 system voltages • Monitors processor/system fan speed, with failure alarm • Automatic chassis and processor fan control • Read back capability; displays temperature, voltage and fan speed INTEGRATED I/O• Two NS16C550A-compatible high speed UARTs • One SPP/ECP/EPP parallel port • Supports 360k/720k/1.22M/1.44M/2.88MB, LS-120MB floppy drives COMPATIBILITY• Microsoft PC 98 compliant • PCI 2.2. CNR 1.0 "A" Type, and AC ´97 compliant • Intel® AGP version 2.0 CONNECTORS• 2 external USB ports (2 additional USB ports available) • 1 connector for IrDA interface • 1 DB-9 serial ports • 1 DB-25 parallel port • 2 IDE connectors • 1 floppy connector • PS/2 keyboard port; 1 PS/2 mouse port • 1 20-pin ATX power supply connector • 1 Wake-On-LAN connector; 1 wake-on-ring connector • 3 audio jacks: line-out, line-in, and mic-in • 1 DB-15 video connector • 1 DB-15 game/MIDI port • 3 fan connectors for CPU, chassis and auxiliary fans EXPANSION SLOTS• 5 PCI slots • 1 CNR slot (max 4 PCI when CNR slot is used) • 1 AGP slot, supports 4X/2X AGP CIRCUIT BOARD (PCB)• 4 layers, ATX form factor • 30.5cm (12") x 22.0cm (8.7") ENVIRONMENTAL• Operating Temperature: 0°C to 45°C at 20% to 80% relative humidity (non-condensing) • Storage Temperature: -20°C to 75°C at 10% to 95% relative humidity (non-condensing) • MTBF: 20,0000 hours (minimum) SAFETY• UL, CSA, FCC Class B, Class B, CE |
|
|
